CNC High-speed Plasma Cutting Production Line

LEAVE MESSAGE

Product Introduction

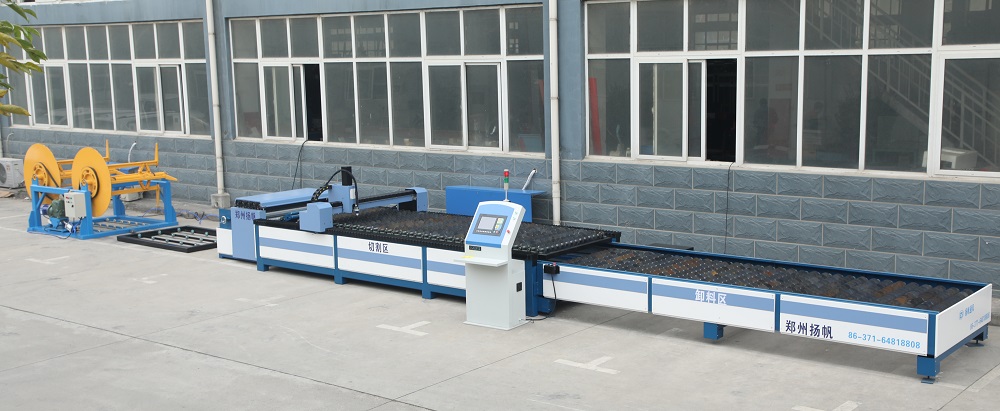

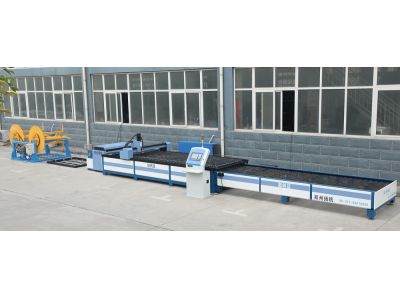

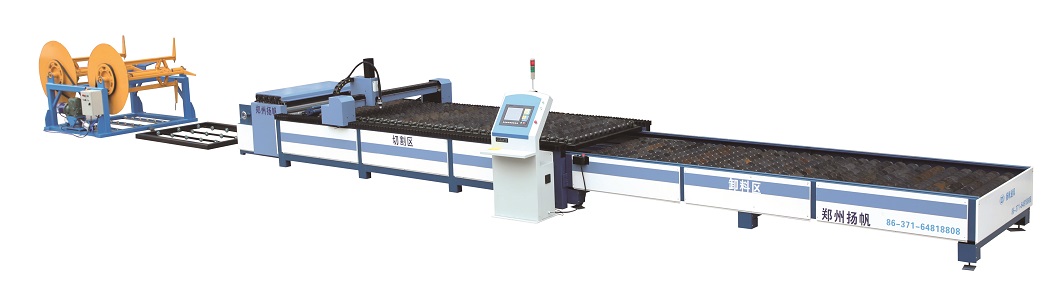

CNC High-speed Plasma Cutting Production Line

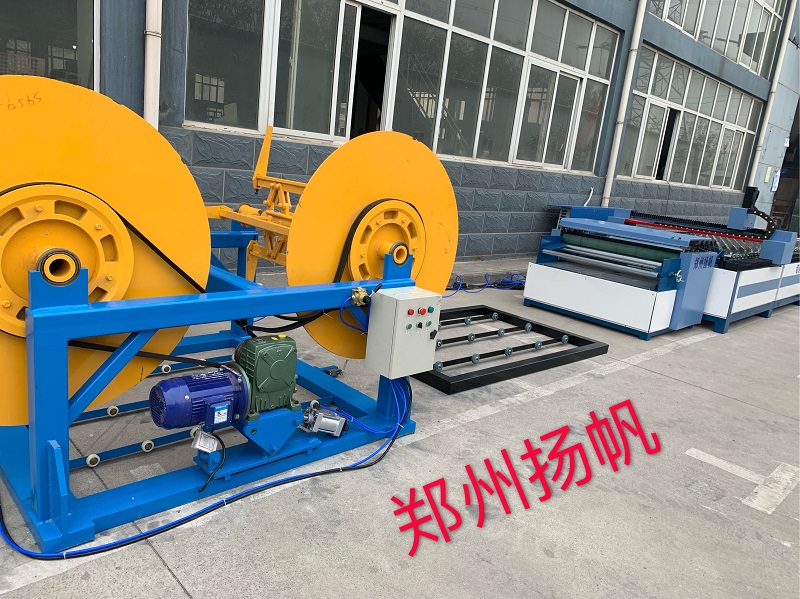

1. This equipment has functions of leveling, crimping and cutting. A secondary product line is not required, which saves the time of separate leveling, crimping and cutting. It can also automatically feed the material according to the length of the layout, which saves the material.

2. This equipment is designed with a cutting area and a unloading area, and is also equipped with a dual movable loading platform. After the completion of cutting, the cut materials leave the cutting area with the loading platform and enter the unloading area for code writing and unloading. Another loading platform enters the cutting area from the unloading area at the same time. The system automatically comes with the next cutting code, to execute the next cutting instruction after confirming by clicking. The time for platform exchange is 17 seconds. This cycle can realize cutting and unloading at the same time, which is efficient and safe.

3. Take the cutting of 0.8mm thick plate as an example, the high-speed plasma cutting has the following advantages compared with common plasma cutting:

Type

Positioning speed (m/min)

Cutting speed (m/min)

Common plasma cutting

10

8

Yangfan high-speed plasma cutting

60

22

1000 watts laser cutter

60

12



4. Summary: This equipment can save a secondary production line operator and a plasma operator (since the cutting speed is more than twice of that of common plasma cutting, the overall efficiency is about 2 desktop laser cutters). Compared with laser cutter, our product greatly saves the equipment purchase cost and operation cost and can save two operators. It is the best equipment for the blanking of shaped parts.

Technical Parameters

S/N

Items

Quantity &specification

Remarks

1

Main Machine

10m(L)×1.25m(W)

Dual-driven

2

Movable exchange platform

2sets

Effective cutting size of one platform: 4mx1.25m

3

Total length of machine tool with decoiler

16m

2 coils

4

Total length of machine tool with decoiler

20m

4 coils

5

Total weight of machine tool

3.5Tons

Including decoilers

6

Heavy leveling and beading unit

 Max-thickness 1.5mm

Beading is available

7

Heavy material coil(set

2sets or 4sets

Loading capacity: 8 tons

8

High precision servo motor (set)

3

Made in USA

9

High sensitivity automatic arc voltage regulator (set)

1

Made in Shenzhen

10

Precision planetary reducer (set)

3

Made in Germany

11

Imported H-type guide

2

Made in Taiwan

12

Plasma cutting torch

1

Brand cutting gun

13

Plasma unit (set)

1

Huayuan 100

14

CNC system (set)

1

5-axis & 4-linkage control system

15

Programming software (set)

1

PM2000

16

Anti collision system of cutting gun

1

Self developed

17

Cutting thickness (mm)



Aluminum plate and Galvanized plate 14mm,Stainless steel plate 10 mm
